NESS D8XD DELUXE NAVIGATOR with LUX QUAD DETECTOR SYSTEM KIT

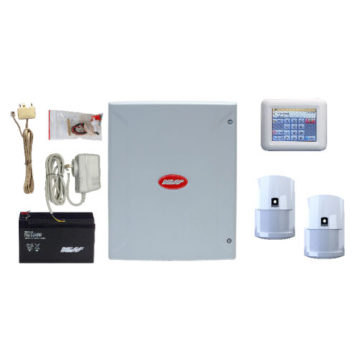

NESS D8XD Deluxe Navigator with LUX Quad Detector System Kit

Part No. K6314

Description: Ness D8XD Deluxe Navigator with LUX Quad Detector System Kit.

Warranty: 3 Year Ness Manufacturers Warranty.



NESS D8XD DELUXE NAVIGATOR with LUX QUAD DETECTOR SYSTEM KIT

Part No. K6314

Navigator Touch Screen
DIMENSIONS (W – H – D) 108 x 86 x 15 mm
DISPLAY TYPE 3.5″ Colour lCD
DISPLAY RESOLUTION 320 x 240
TOUCH SCREEN Touch sensitive surface
COMPATIBILITY D8XD / D16XD
OPERATION VOLTAGE 12VDC supplied by the control panel
DATA 2 wire proprietary Ness data bus


Navigator Control Panel D8XD

BOX DIMENSIONS (W – H – D) 235 x 300 x 90 mm
POWER SUPPLY 15VDC, 2A
POWER SUPPLY 13.8v DC @ 800mA
QUIESCENT CURRENT DRAW 80mA with 1 keypad
OPERATING VOLTAGE 17VAC / 15V DC
RECHARGEABLE BATTERY 12 volt 7.0 Amp/hour Sealed lead Acid
BATTERY CHARGING CURRENT 350mA maximum, current limited
DYNAMIC BATTERY TEST Backup battery is tested under load, hourly and on arming
FUSES 2 Amp auto resetting  / Siren output & Reset output.
500mA auto resetting / 12 volt auxiliary outputs.
200 mA auto resetting / Strobe output
ZONE OUTPUTS 8 zone inputs. 2 x 24hr tamper inputs
END OF LINE RESISTOR Choice of 12 programmable values including N/C.
Default 2200 Ohms (2.2k)
MAXIMUM KEYPADS 3 x Navigator Touch Keypads max.
INTEGRATED RADIO OPTIONS Multi-pin connector for the optional Ness Radio Interface. Supports up to 55 Radio keys . Up to 8 radio zones
SERIAL HEADER Serial data port for direct connect programming using NessCommsTM software. Also 2 way serial data
INTEGRATED ACCESS CONTROL Multi-pin connector the optional Weigand Interface. Supports up to 3 Ness proximity access card readers
SIREN OUTPUT On board siren driver with timed output. Maximum 3 x 8 Ohm horn speakers
STROBE OUTPUT 12v DC timed output. Maximum 2 x 1 Watt strobe lights
RESET OUTPUT 12v DC timed output. Max. 3 x 12v piezo screamers
EQUIPMENT POWER OUTPUT 13.8v DC output for powering detectors and other equipment. Maximum 500mA
AUX READER Multi-pin connector provides outputs Aux1, A
