UB200SM

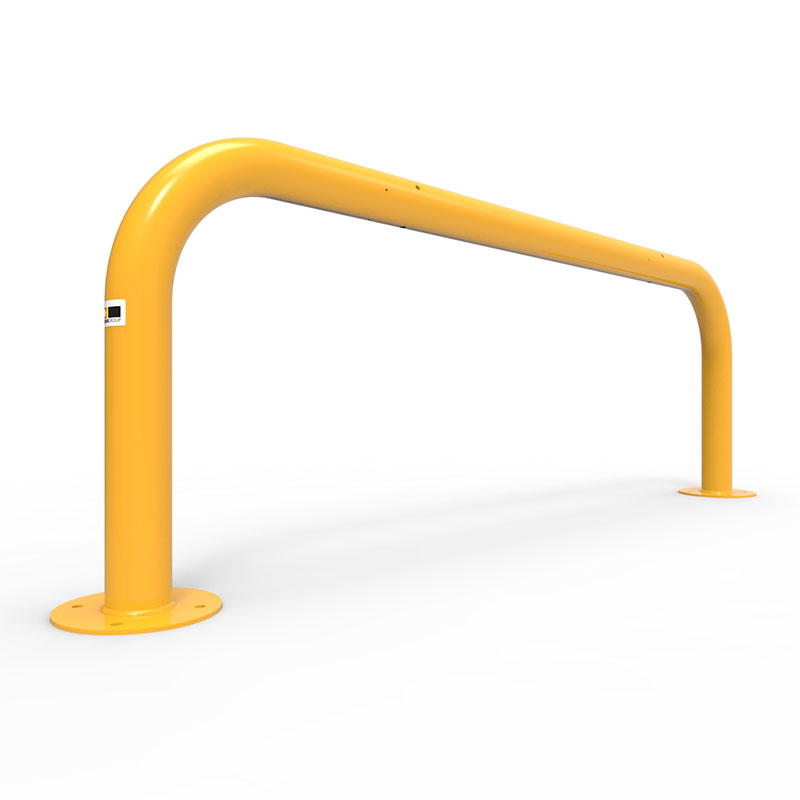

UB200SM – U-Bars Heavy Duty Steel Surface Mount

Part No. UB200SM

Description: U-Bars Heavy Duty Steel Surface Mount

Size: 90mm Diameter X 2000mm Width X 700mm Height

Weight: 41kg

Finish: Galvanised & P/Coated Safety Yellow

Warranty: 1 Year Factory Warranty

UB200SM – U-Bars Heavy Duty Steel Surface Mount

UB200SM – U-Bars Heavy Duty Steel Surface Mount are suitable for a wide range of uses. Fabricated from heavy 3mm thick wall tube and all models are galvanised and powder coated or only galvanised. There are numerous reflective options available for the U-Bar Heavy Duty. Models include surface mount and below in-ground bollards. Surface Mount models are supplied with fixings.

Material: 90mm Diameter Steel Pipe 5mm Wall

Finish: Galvanised and powder coated safety Yellow. Custom powder coated colours available.

Height: 700mm Above Ground

Width: 2000mm

Weight: UB200 models 41kgs (approx.)

Installation: 6mm Thick surface flange 225mm in diameter with 8 off 12 x 60mm masonry anchors for surface mount model.

Fixings: Supplied with surface mount models. Connector pins supplied with all models.

Sales, Installation & Service – Sydney, Wollongong, Newcastle, Campbelltown, Sutherland, Nowra, Canberra & Ulladulla. For More Information contact KELRYAN 1300 535792.







Additional Information

Weight 41 kg
Dimensions 9 x 200 x 70 cm

Download PDF

KELRYAN Heavy Duty Steel U-Bar PDF Data Sheet 2020

Installation

KELRYAN provides an installation service for this product range. For more information contact us 1300 535792
