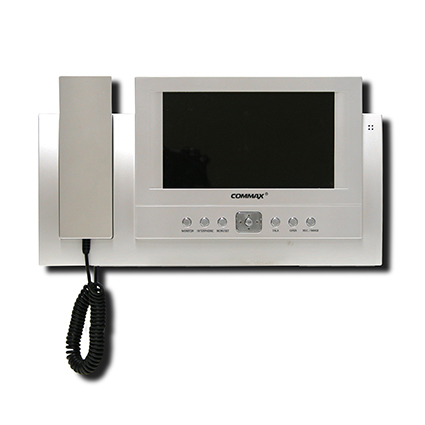

CAV71B Commax Video Intercom System

CAV71B Commax Video Intercom System

CAV71B Commax Video Intercom System.

CAV71B Commax Video Intercom System has a 7 inch colour TFT LCd screen with built in switcher to allow connection of up to two outdoor stations.

CAV71B Commax Video Intercom System.

CAV71B Commax Video Intercom System has a 7 inch colour TFT LCd screen with built in switcher to allow connection of up to two outdoor stations.

• 7 inch colour TFT LCD
• RG59 + CAT5 cabled
• Handsfree or handset talk
• Connects 4 cameras including CCTV cameras (NTSC format)
• Expands to 20 monitors using control box (CDS4CM)
• OSD button to choose menu and select options
• Built-in memory
• Room to room selective call and talk
• Door release function
• Burglar alarm function
• 18V DC 1 A regulated
• COMX2705 Monitor Dimensions (mm): 341 (W) x 174 (H) x 44 (D)
• COMX2505 Fascia Dimensions (mm): 125 (W) x 185 (H) x 20 (D)
• Back Box Dimensions (mm): 100 (W) x 168 (H) x 40 (D)

  • Note:
  • Power supply not included with kit
  • Requires POW1261

Sales, Installation & Service – Sydney, Wollongong, Newcastle, Campbelltown, Sutherland, Nowra, Canberra & Ulladulla. For More Information contact us 1300 535792.

Download PDF

commax-cdv-71bq71bqs

Installation

KELRYAN provides an installation service for this product range. For more information contact us 1300 535792
