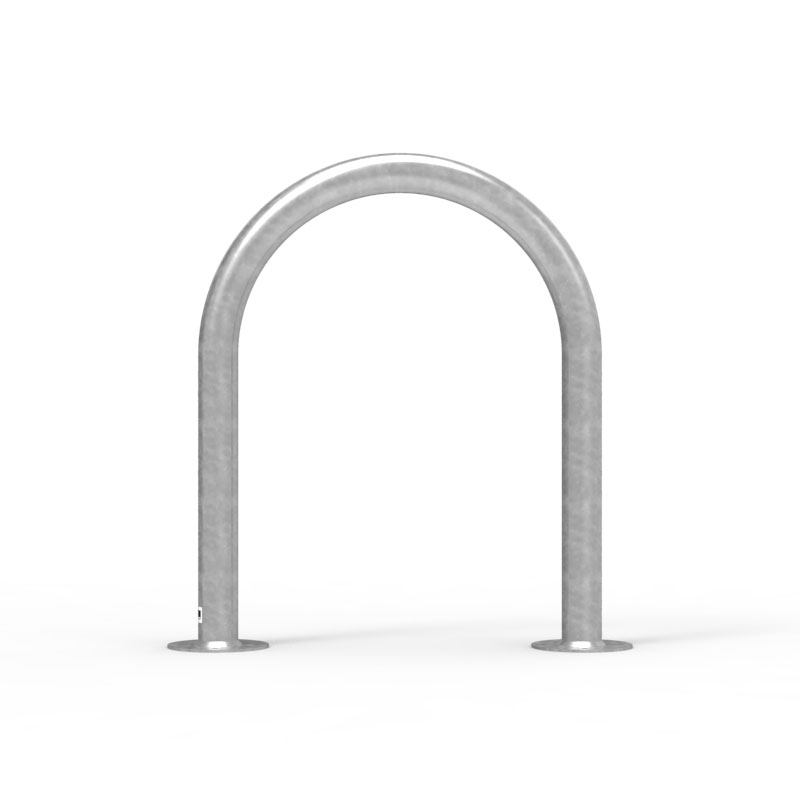

CH9081SM-G Hoop Bollard Galvanised

Part No. CH9081SM-G

Description: Hoop Bollard Galvanised

Size: 900mm Width X 1100mm Height X 90mm Diameter Pipe

Flange Size: 225mm Plate Diameter

Finish: Galvanised

Warranty: 1 Year Factory Warranty

CH9081SM-G Hoop Bollard Galvanised

CH9081SM-G Hoop Bollard Galvanised are rolled from a single piece of heavy wall pipe and are available at either 600mm or 900mm wide models (500 or 810mm post centre to centre). Choose from three mounting options:

  • Fixed Surface Mount
  • Fixed Below In Ground
  • Removable Below In Ground – Two In ground lockable sleeve options:
    • BSL90S-CD  – Core Drilled Sleeve (For Existing Concrete Installations)
    • BSL90S-NC – New Concrete Sleeve (For New Concrete Pour Installations).

Hot dip galvanised is the standard finish but they can be powder coated in various colours on request (additional charges apply).

For more information on Hoop Bollards contact KELRYAN 1300 535792 – Sales, Installation & Service – Sydney, Wollongong, Nowra, Canberra, Newcastle, Ulladulla

Additional Information

Weight 28.8 kg
Dimensions 9 x 90 x 110 cm

Download PDF

KELRYAN PDF Data Sheet Galvanised Hoop Bollards 2020 Page 1

KELRYAN PDF Data Sheet Galvanised Hoop Bollards 2020 Page 2


KELRYAN provides an installation service for this product range. For more information contact KELRYAN 1300 535792.
